Precast Block & Mass-Concrete Element Design
We design precast concrete blocks and mass-concrete elements — base slabs, ballast and counterweight blocks, and similar heavy units — that are governed by their reinforced-concrete capacity and by the interface and lifting forces during handling. We design and detail each unit to Eurocode 2 for strength, serviceability and durability.
The design checks we perform
- Flexural design
-
We size reinforcement for the design moments under the governing load cases and confirm minimum steel and cover.
- Shear design
-
We verify shear capacity and provide shear reinforcement only where the section requires it.
- Crack-width control
-
We check service-load crack width against the durability limit, which is often decisive for large exposed or buried blocks.
- Interface / shear-connection reinforcement
-
Where units act compositely or transfer shear across a joint, we design the interface shear-connection reinforcement to Eurocode 2.
- Base-slab design
-
For base slabs we check bearing pressure on the supporting ground together with the flexural and shear design.
- Lifting and handling
-
We check lifting inserts and unit stresses during demoulding, stacking and installation, allowing for the substantial self-weight of mass-concrete units.

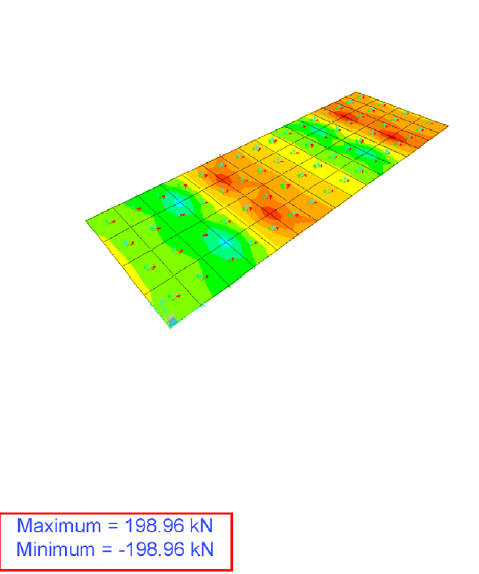

Base Slab Analysis

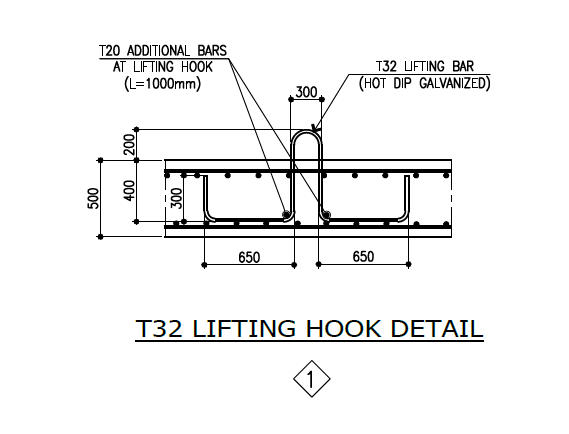

Lifting Hook Detail

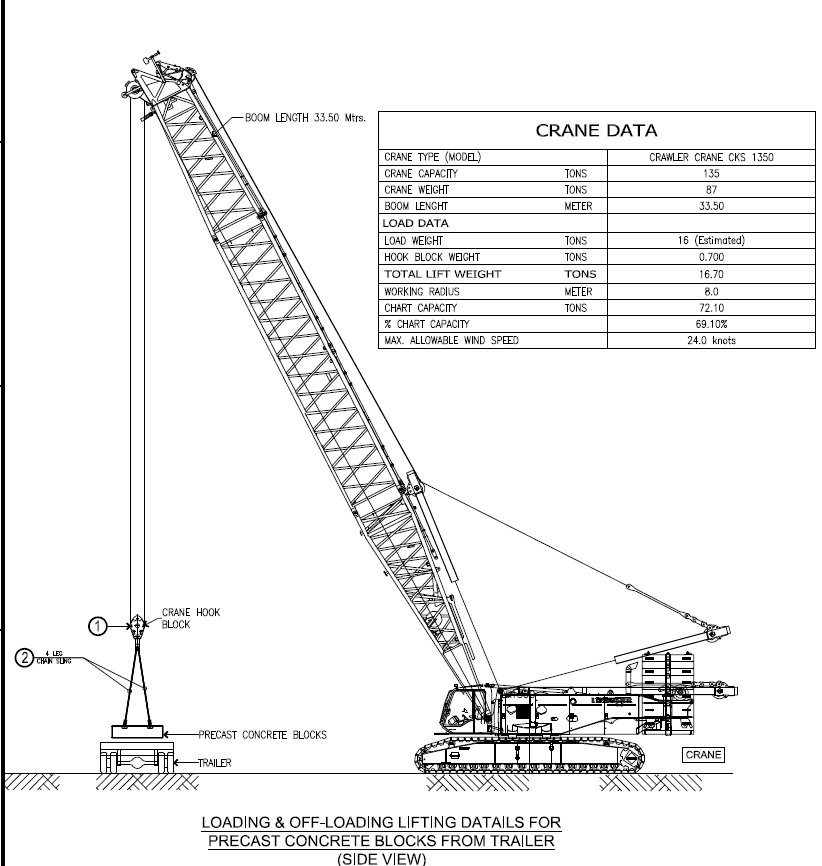

Lifting and Off-Loading Plan
Governing standards and how we apply them
- Eurocode 2 (EN 1992-1-1)
-
Our primary code for flexure, shear, interface shear and serviceability crack-width control. Serviceability checks are carried out with EC2-compliant methods.
- QCS
-
We align materials, durability and cover with the project general specification for local approval.
Why choose Precasterz for block and mass-concrete design
- Serviceability-led
-
We treat crack-width control as a primary check for large units, where durability and appearance depend on it.
- Interface design done properly
-
We design the shear-connection reinforcement at joints and composite interfaces, not just the gross section.
- Handling of heavy units
-
Our lifting and stacking checks account for the large self-weight typical of mass-concrete blocks.
