We design precast concrete pylon and signage structures — the columns, upper beams and foundations that support tall freestanding signs — which are governed by wind on the sign face and the resulting overturning at the foundation. We design the structure and its foundation as one load path from the sign down to the soil.

Erected precast concrete pylon: twin columns with an upper beam on a precast footing, propped during installation.

The design checks we perform

Wind load: We establish the design wind force on the sign face and structure, including force coefficients and height factors, and the overturning moment and shear delivered to the foundation.
Upper beam / sign frame: We design the upper beam and frame that carry the sign for flexure, shear and crack width.
Column / strip design: We design the supporting column or strip for combined axial load, shear and bending, and detail the vertical and shear reinforcement.
Footing flexure and shear: We design the footing for flexure and one-way shear under the column reactions and overturning.
Punching shear: We check two-way (punching) shear around the column or pedestal on the footing.
Crack-width control: We verify service-load crack width on the footing and beam for durability.
Pocket / base connection: We resolve the connection forces and design the pocket or base fixing that transfers the moment and shear into the foundation.

3D Structural Model

General Arrangement and Connections

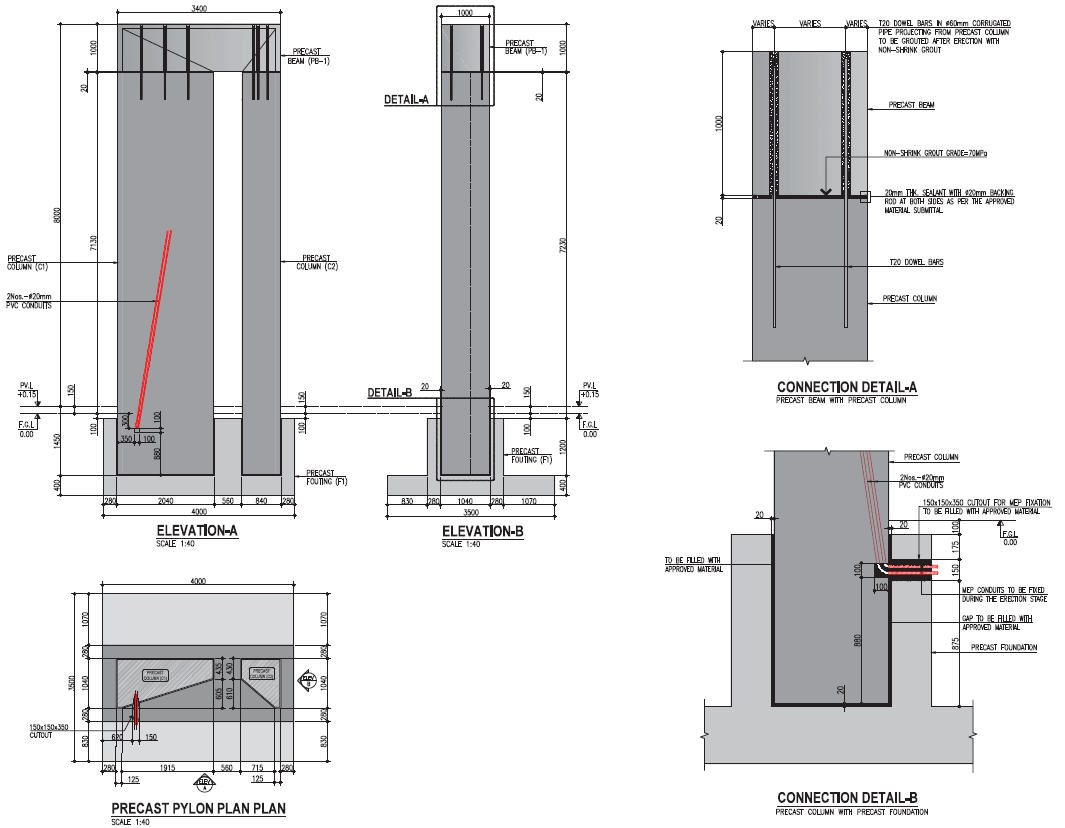

Precast pylon general arrangement: elevations, plan, and connection details for the beam-to-column and column-to-foundation joints.

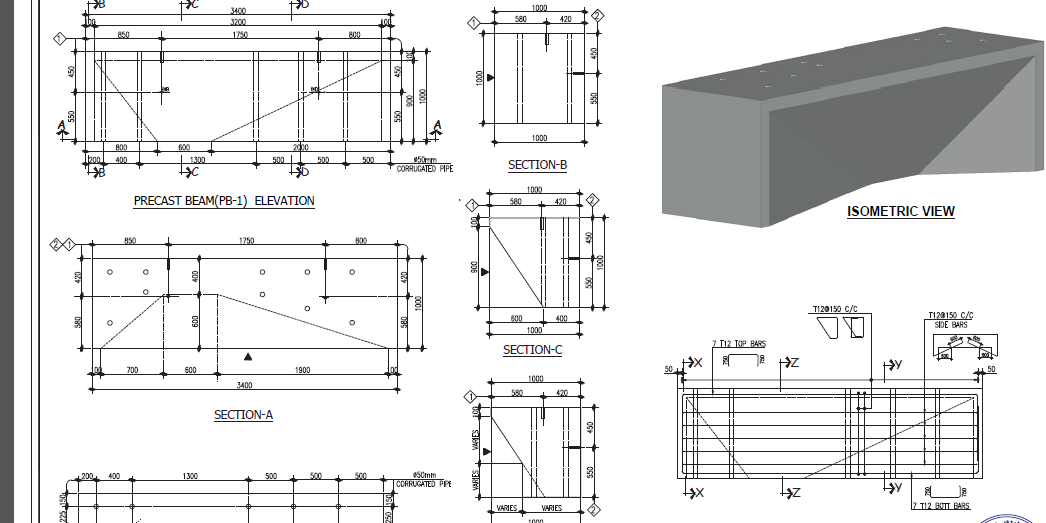

Upper Beam Detail

Governing standards and how we apply them

ACI 318-19: Primary code for flexure, one-way and punching shear, crack width and reinforcement detailing of the beam, column and footing.
Wind loading: Wind force on the sign and structure is derived from the applicable wind code, matching the project specification.
QCS: We align materials, durability and cover with the project general specification.

Why choose Precasterz for pylon and signage design

One load path: We carry the wind action from the sign face through the beam and column into the footing and the soil, with no gap between element and foundation design.
Punching and overturning checked: Two-way shear and overturning stability govern many sign foundations; we check them rigorously.
Connection-aware: The pocket or base fixing is designed with the structure so the moment transfer is reliable.
