Precast Lifting Design Reports
Precasterz provides expert structural design for precast concrete lifting systems. We ensure the safe and reliable handling of precast elements through meticulous analysis and adherence to international standards. Our engineering expertise guarantees the structural integrity of lifting inserts and precast components during all lifting operations, ensuring project safety and efficiency.
Our Expertise in Precast Lifting Structural Design
Ensuring the safe and efficient handling of precast concrete elements is paramount. Our structural design services for lifting inserts provide the necessary analysis and verification to guarantee safety and reliability during the lifting process.
- Rigorous Structural Analysis
-

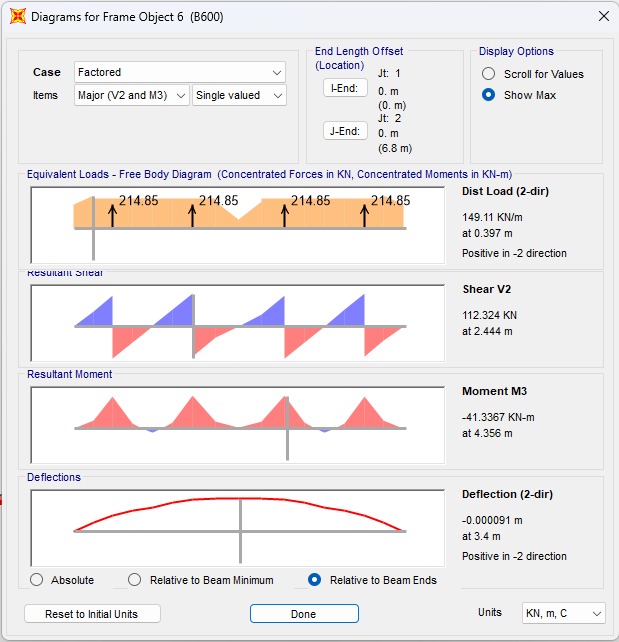

We perform detailed structural analysis of both the precast elements and the lifting insert systems. This involves evaluating stresses and forces during lifting to ensure all components can safely bear the load, accounting for factors like the element's weight and dynamic effects.
- Adherence to Industry Standards
-
Our designs strictly follow relevant international and regional codes and standards, such as ACI 318 and DEP specifications, alongside local regulations like QCS. This ensures that our work meets the highest engineering requirements for safety and quality.
- Verification of Lifting System Adequacy
-
We verify the structural adequacy of the selected lifting inserts and their anchorage within the concrete element. This includes checking against potential failure modes like steel failure, concrete breakout, and pullout to confirm they can safely support the factored lifting loads.
- Ensuring Safe Handling Operations
-
The ultimate goal is to ensure that precast elements can be lifted, moved, and installed safely and without damage. Our detailed design outputs and verification processes contribute directly to safe handling operations on site.
The lifting checks we perform
For every precast element we verify the complete lifting load path — from the rigging, down through the inserts, into the concrete and the element itself — at each handling stage.
- Lifting load and dynamic factor
-
We establish the factored lifting load, applying the dynamic / impact factor appropriate to demoulding, turning, transport and erection, plus an allowance for form suction at demoulding.
- Sling and rigging tension
-
We calculate the tension in each sling leg from the sling angle and number of legs, and the resulting forces delivered to the inserts, keeping sling angles within safe limits and checking lifting-beam reactions where a spreader is used.
- Insert and anchor capacity (ACI 318-19, Chapter 17)
-

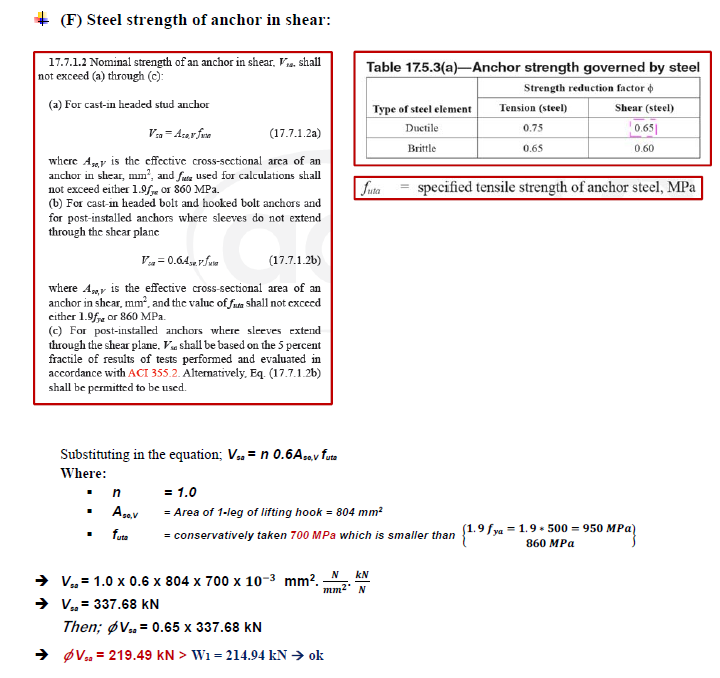

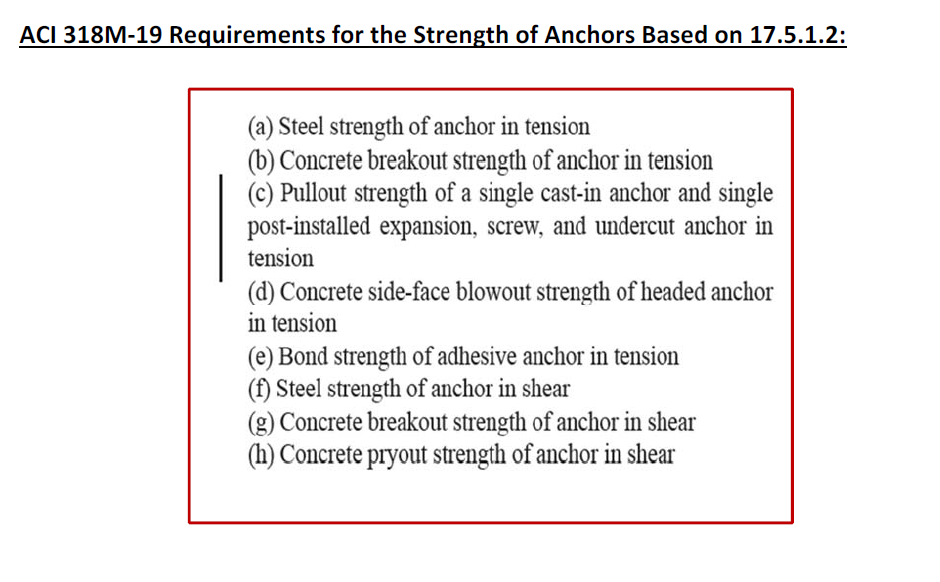

We check the cast-in inserts and anchors against every failure mode — steel strength, concrete breakout, pullout, side-face blowout and pryout — in both tension and shear, including combined tension-shear interaction and the effects of edge distance and spacing.
- Lifting-bar (steel-rod) anchors
-
For cast-in lifting bars we verify the bar shear capacity and the bearing and anchorage of the bar within the concrete, checking each load category for the lifting arrangement.
- Anchorage reinforcement
-

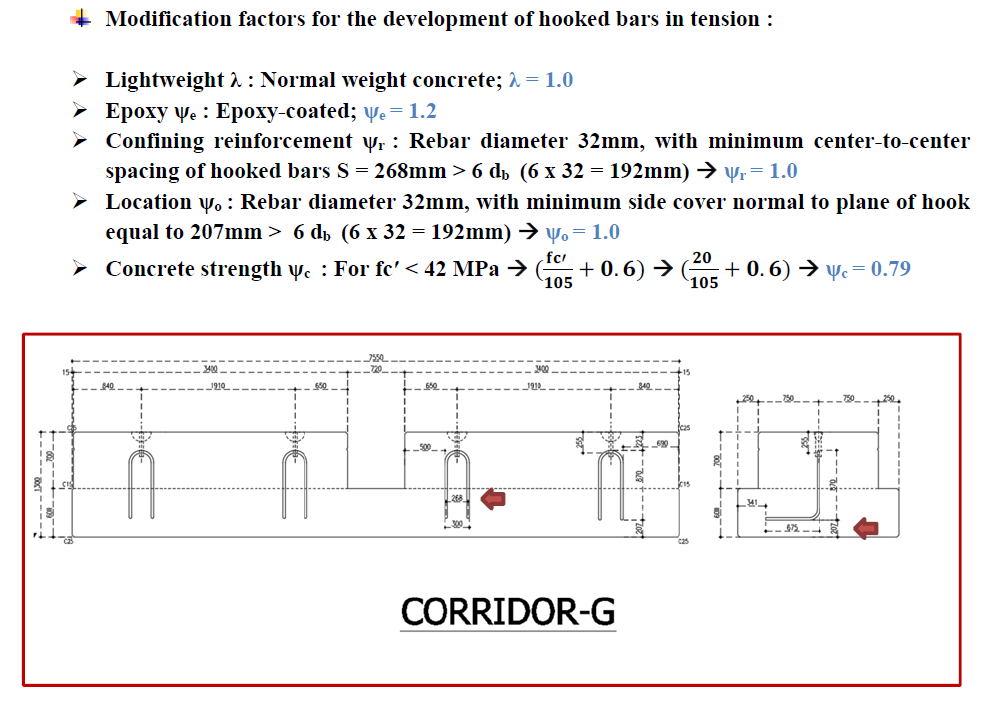

Where the concrete capacity alone is not sufficient, we design supplementary anchor reinforcement to develop the insert forces into the element and to control cracking at the lifting points.
- Element stresses during handling
-
We check the flexural and shear stresses induced in the element itself by the chosen number and position of pick points, including slender panels and plain (lightly reinforced) concrete elements that are sensitive to handling.
- Tilting, turning and storage
-
We verify the stresses during tilt-up and turning operations and confirm the support and stacking arrangement used in storage and transport.
We design to ACI 318-19 Chapter 17 for anchoring to concrete and to PCI handling practice, aligned with the project specification (QCS and DEP where applicable).
======= >>>>>>> e30d826723e5a97b794aee6f4aa9aeedf02bb0d7Why Choose Precasterz for Precast Lifting Analysis?
- Expertise and Specialization
-
Precasterz has a team of expert civil engineers and draftsmen specializing in precast solutions. This focused expertise ensures a deep understanding of the unique challenges in precast lifting.
- Commitment to Quality and Precision
-
They are dedicated to bringing innovation, quality, and precision to every project. This meticulous approach is crucial for the safety of lifting operations.
- Adherence to Stringent Standards
-
Their design checks are performed according to major international and regional codes and standards, including QCS-2014, ACI 318-19M, and DEP specifications. Following these standards guarantees a high level of safety and reliability.
- Comprehensive and Rigorous Analysis
-
They conduct detailed structural analysis, including checks for various potential failure modes, to ensure the structural adequacy of both the lifting inserts and the precast elements during the lifting stage.
Lifting Analysis
