Precast Cover Slab Design

Request a Cover Slab Design

We design reinforced precast concrete cover slabs for drainage, utility-trench and trafficked applications. These slabs are governed by flexure and shear under earth, surcharge and traffic loading, and by serviceability crack-width control for durability, so we design and detail each unit to carry its load cases and to be reinforced for the specified exposure.

Finite-element model of a precast cover slab with openings, showing the slab mesh and local axes.

The design checks we perform

Load cases: We build the governing combinations from self-weight, earth and surcharge, and traffic / wheel loading where the slab is trafficked, at ultimate and serviceability limit states.
Flexural design: We size the main and distribution reinforcement for the design moments across the span and at supports, and confirm minimum steel and cover.
Shear design: We verify one-way shear capacity and provide shear reinforcement only where the section requires it.
Crack-width control: We check service-load crack width against the durability limit and adjust bar size and spacing to comply.
Development and anchorage length: We detail reinforcement development, lap and standard-hook anchorage lengths to ACI 318-19 so bars are fully effective at the critical sections.
Bearing and support: We verify bearing length and support details so the slab seats correctly on its supporting walls or beams.
Lifting and handling: We check lifting inserts and slab stresses during demoulding, stacking and installation.

Flexural Design to ACI 318

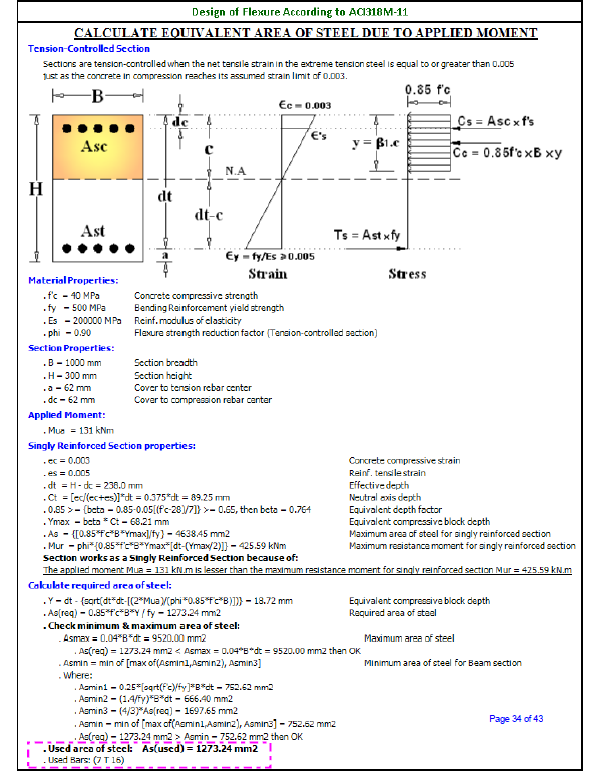

Flexural design calculation for a precast cover slab to ACI 318: equivalent area of steel for the applied moment on a tension-controlled section.

Reinforcement Details

Governing standards and how we apply them

ACI 318-19: Our primary code for flexure, shear, serviceability crack width and reinforcement development and anchorage, including the standard-hook development-length provisions used to detail the slab.
QCS: We align materials, durability and cover with the project general specification for local approval.

Why choose Precasterz for cover slab design

Correct development-length detailing: We size and anchor every bar to ACI standard-hook and development-length rules, so reinforcement is effective exactly where the moments and shears peak.
Durability-driven serviceability: We treat crack-width control as a primary check, not an afterthought, which matters for buried and exposed cover slabs.
Buildable units: Our detailing accounts for casting, lifting and installation so the slabs arrive and place without rework.
